Welded Wire Mesh

Short Description:

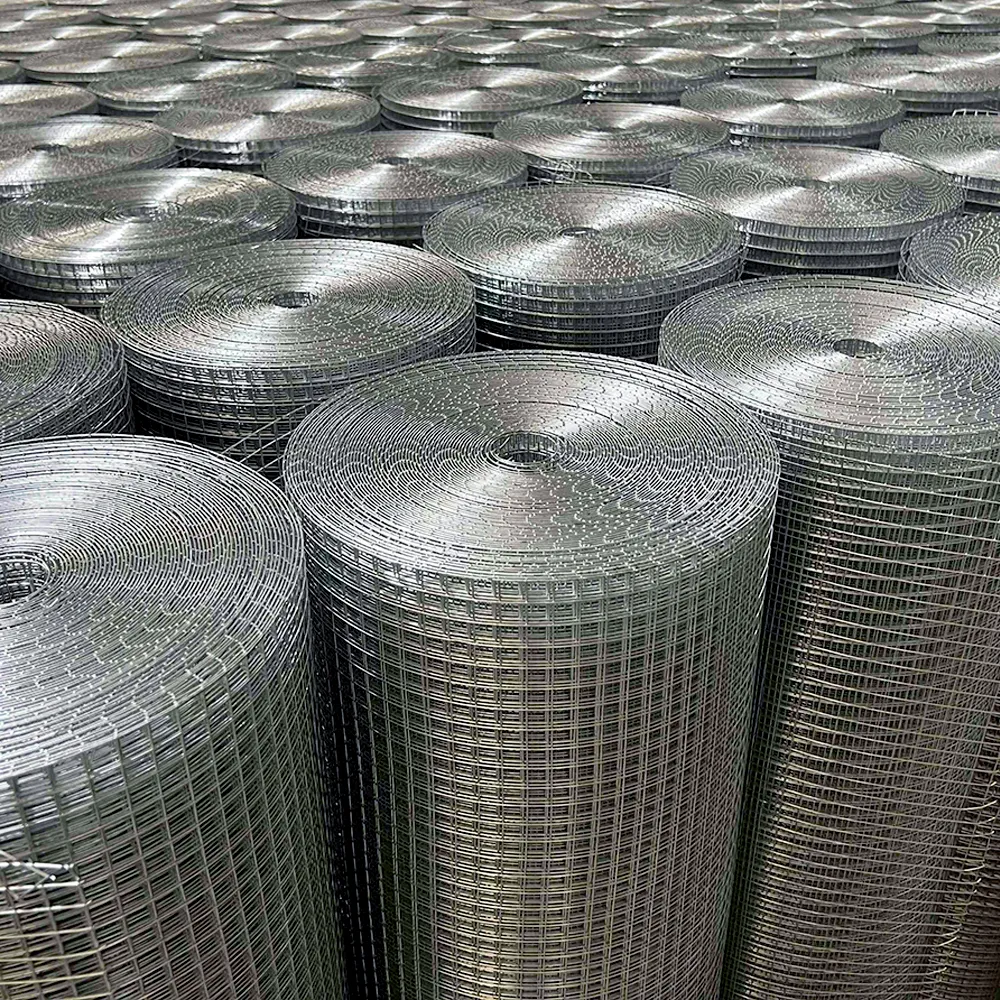

Welded wire mesh is made of high quality low-carbon steel wire. It has the advantages of simple structure, fast production, beautiful, practical and easy transportation. Welded wire mesh rolls can be classified according to different materials and surface treatments.

Wire diameter：0.5-3mm

Mesh size：1/4“-8”

Width：0.4-2m

Lentth：5m-30.5m

Material：Galvanized wire; Black annealed wire; Stainless steel wire

Packing：Plastic film; waterproof paper; pallet, etc.

Send email to us Download as PDF

Product Detail

Product Tags

Product introduction

Read More About galvanized hardware cloth

Simple Construction

Firm Structure

Economical And Versatile

Long Service Life

Product introduction

Read More About welded wire mesh supplier

Welded wire mesh is highly versatile and durable material, made from high-quality low-carbon steel wire. This mesh is available in a range of surface treatments including Electro galvanized, Hot dipped galvanized, and PVC coated to meet various application needs. Its uses span across construction, agricultural sectors, industrial applications, and more, providing reinforcement, security, and support where needed.

Opening		Wire Diameter BWG
In inch	In metric unit(mm)	Wire Diameter BWG
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15
2” x 4"	50.8mm x 101.6mm	12,13,14,15
4” x 4"	101.6mm x 101.6mm	12,13,14,15
4” x 6"	101.6mm x 152.4mm	12,13,14,15
6” x 6"	152.4mm x 152.4mm	12,13,14,15
6” x 8"	152.4mm x 203.2mm	12,13,14
Roll Width from 0.4M to 2M, Roll length: 5M,10M,30.5M,50M.etc

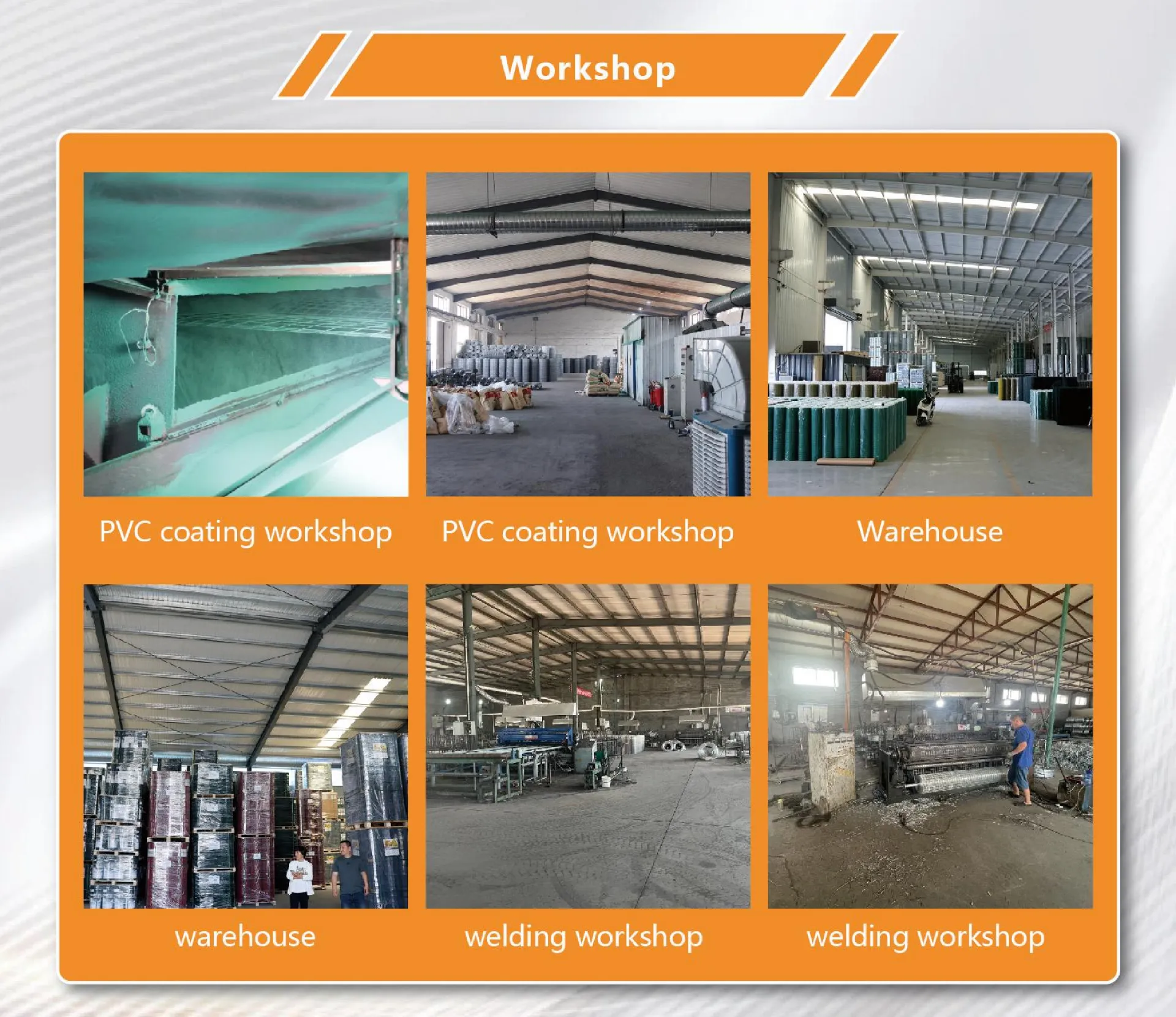

Our welded wire mesh stands out for its quality and reliability, backed by certifications and widely recognized by numerous customers. With an exceptional production capacity, we ensure prompt delivery of high-grade products. We are proud to offer free samples, allowing customers to assess our quality firsthand. Our factory is equipped with state-of-the-art machinery, ensuring each product meets our stringent standards.
